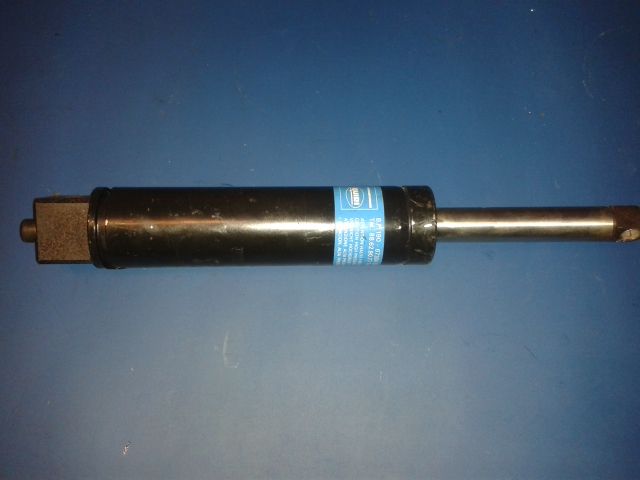

QUIRI/G-01249/RG500-C100/PAX150BAR

 Example :

RG 1500 ISO d = 36 mm = 3.6 cm P = inflating pressure = 150 bar S = π /4 x 3.62 = 10.17 cm2 F1 = 150 x 10.17 = 1525 kgf Unit conversion : 10 bar = 1 MPa 1 kgf = 9.81 N 1 daN = 10 N = 1.02 kgf

d=45mm =4,5cm (RG500-C100)

P=150 bar

S=3,14/4 X (4,5X4,5)=15,89 cm2

F=150X15,89=2383kgf

Ask about this product Order by phone

https://www.daytonprogress.de/files/dayton/downloads/kataloge-dayton-progress/Deutsch/quiri_gdf.pdf
